FOR SALE: AirBurners S330 Tier 4 Final FireBox (Air Curtain Burner)
High-Capacity, EPA-Compliant Wood Waste Reduction Solution

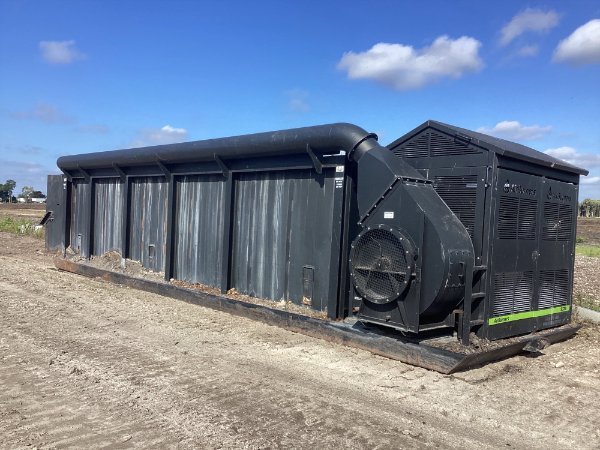

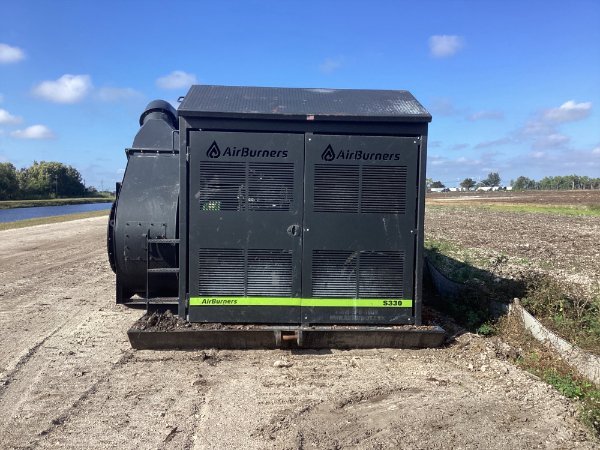

Available now is an AirBurners S330 Tier 4 Final FireBox, a self-contained, completely assembled above-ground air curtain burner (air curtain incinerator) engineered for high-temperature reduction of wood waste. This unit is designed for both stationary and mobile applications and is fully compliant with US EPA 40 CFR Part 60 requirements.
The S330 FireBox ships factory-assembled and ready for immediate use, requiring no disassembly for transport or relocation. Proven in demanding environments, it is widely used in forestry, agriculture, land clearing, landfills, transfer stations, disaster recovery, and Department of Homeland Security contingency operations.
Key Specifications & Features:
Power
Four-cylinder turbo diesel engine, approx. 74.5 HP
HATZ Model 4H50TIC (or equivalent)
No DEF required
US EPA Tier 4 Final emissions certified
Engine-mounted PTO

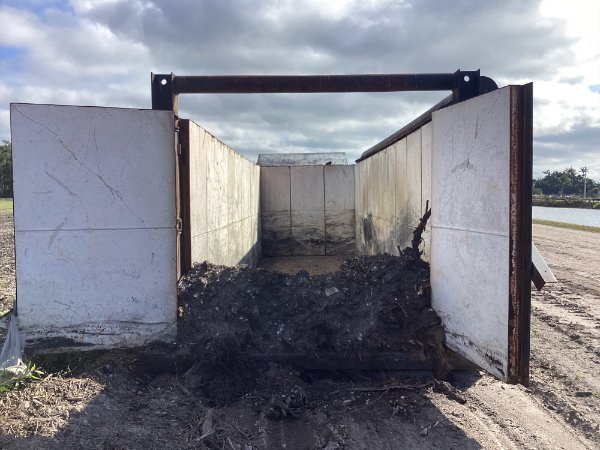

Burn Container (FireBox)
4-inch (102 mm) thick refractory wall panels filled with proprietary thermal ceramic material
Two full-height refractory rear doors
Three ignition holes
FireBox open to the ground
Safety Systems:
Engine over-temperature shutdown
Loss of cooling fluid shutdown
Loss of oil pressure shutdown
Front deck security enclosure
Instrument Panel
MBW electronic engine control
Preset throttle settings
Key switch, tachometer, hour meter
Fuel gauge, oil pressure, water temperature
Integrated safety shutdown features
Air Supply
Custom heavy-duty fan
Fuel Tank
110-gallon (416 L) minimum capacity
Transportation & Setup
Shipped completely assembled
Ready for immediate operation
Crane lifting pads included
Included Equipment:
Ash clean-out rake with 1-inch (25 mm) blank steel faceplate
Loader interface to be attached by end user
Performance:
Average Throughput: 11–13 tons per hour (average)
Fuel Consumption: Approx. 3.0 gal/hr (11.4 L/hr)
Weight & Dimensions
Weight:
63,000 LBS
Overall Dimensions (L × W × H):
40' 4" × 11' 10" × 9' 6"
(12.3 m × 3.6 m × 2.9 m)
FireBox Dimensions (L × W × H):
30' 2" × 8' 5" × 8' 1"
(9.2 m × 2.6 m × 2.5 m)
This AirBurners S330 Tier 4 Final FireBox offers a reliable, efficient, and regulation-compliant solution for large-scale wood waste disposal needs.
*Shipping Paid By Buyer*
**Sales Tax Not Included But Will Be Billed Unless Tax Exempt Documentation Provided**
High-Capacity, EPA-Compliant Wood Waste Reduction Solution
Available now is an AirBurners S330 Tier 4 Final FireBox, a self-contained, completely assembled above-ground air curtain burner (air curtain incinerator) engineered for high-temperature reduction of wood waste. This unit is designed for both stationary and mobile applications and is fully compliant with US EPA 40 CFR Part 60 requirements.
The S330 FireBox ships factory-assembled and ready for immediate use, requiring no disassembly for transport or relocation. Proven in demanding environments, it is widely used in forestry, agriculture, land clearing, landfills, transfer stations, disaster recovery, and Department of Homeland Security contingency operations.
Key Specifications & Features:
Power
Four-cylinder turbo diesel engine, approx. 74.5 HP
HATZ Model 4H50TIC (or equivalent)
No DEF required
US EPA Tier 4 Final emissions certified
Engine-mounted PTO
Burn Container (FireBox)
4-inch (102 mm) thick refractory wall panels filled with proprietary thermal ceramic material
Two full-height refractory rear doors
Three ignition holes
FireBox open to the ground
Safety Systems:
Engine over-temperature shutdown
Loss of cooling fluid shutdown
Loss of oil pressure shutdown
Front deck security enclosure
Instrument Panel
MBW electronic engine control
Preset throttle settings
Key switch, tachometer, hour meter
Fuel gauge, oil pressure, water temperature
Integrated safety shutdown features
Air Supply
Custom heavy-duty fan
Fuel Tank
110-gallon (416 L) minimum capacity
Transportation & Setup
Shipped completely assembled
Ready for immediate operation
Crane lifting pads included
Included Equipment:
Ash clean-out rake with 1-inch (25 mm) blank steel faceplate
Loader interface to be attached by end user
Performance:
Average Throughput: 11–13 tons per hour (average)
Fuel Consumption: Approx. 3.0 gal/hr (11.4 L/hr)
Weight & Dimensions
Weight:
63,000 LBS
Overall Dimensions (L × W × H):
40' 4" × 11' 10" × 9' 6"
(12.3 m × 3.6 m × 2.9 m)
FireBox Dimensions (L × W × H):
30' 2" × 8' 5" × 8' 1"
(9.2 m × 2.6 m × 2.5 m)
This AirBurners S330 Tier 4 Final FireBox offers a reliable, efficient, and regulation-compliant solution for large-scale wood waste disposal needs.
*Shipping Paid By Buyer*
**Sales Tax Not Included But Will Be Billed Unless Tax Exempt Documentation Provided**
- Condition
- Used
- Price
- $200,000
- City
- Marietta
- State
- Georgia - GA
- Zip Code
- 30067
